SN95 Fusebox/Distribution box schematics

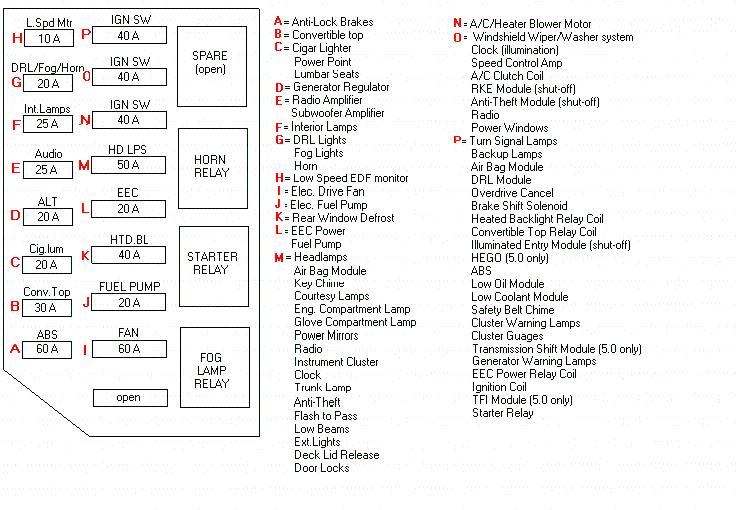

Engine Compartment Power Distribution Box

[Image] compliments of Musttanguy

ęcopyright 2001 PonyPerformance.com

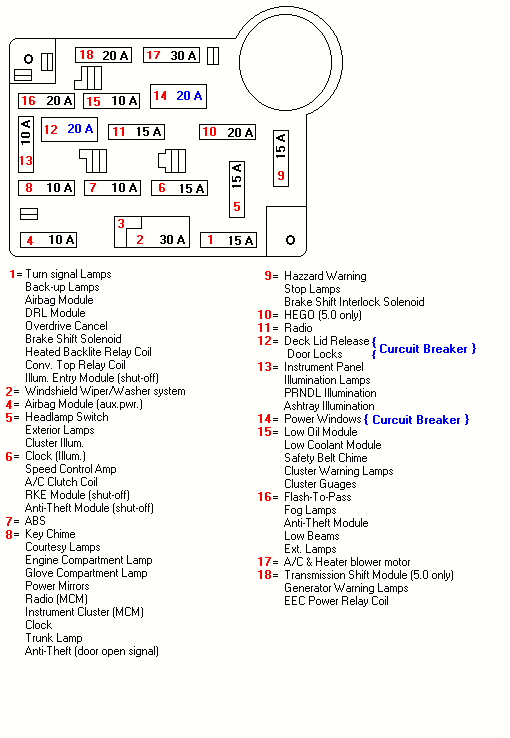

Interior fuse box

compliments of Musttanguy

ęcopyright 2001 PonyPerformance.com
